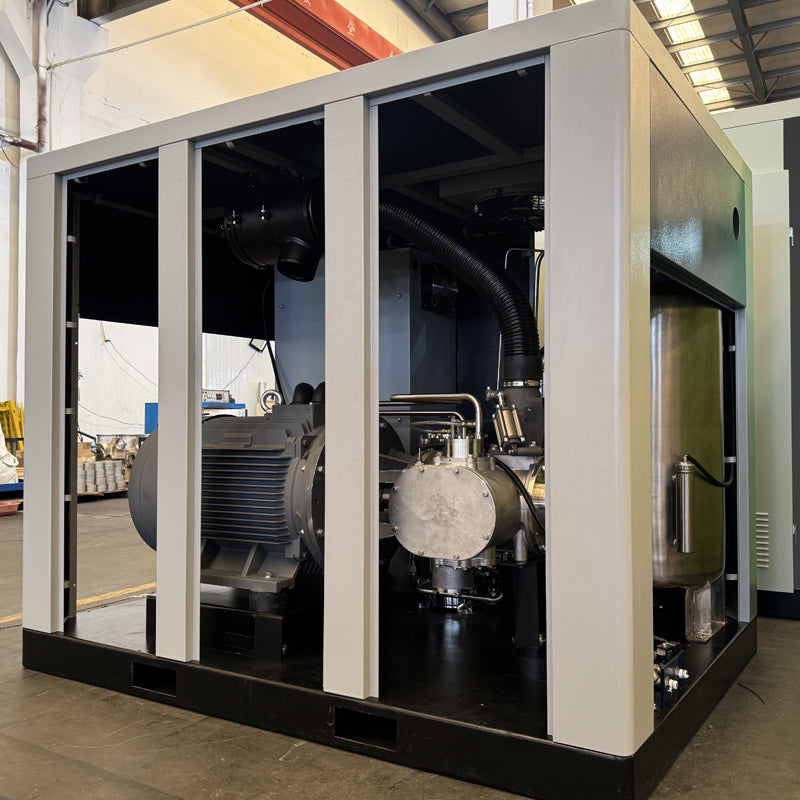

High Power Oil Free Screw Air Compressor 165kw 145kw 130kw High Pressure 40bar 30bar High Efficent Comprssors For Medicine
¥36,100.00
OIL-FREE WATER LUBRICATION NORMAL PRESSURE AIR COMPRESSOR
OPPAIR Smart Energy-Saving Water Lubricating Oil-Free Screw Compressor:
● Self-learning function,smart start/stop
● Detect the ambient temperature to prevent the ambient temperature from being too high to cause high-temperature failure
● Detect the terminal pressure of the post-treatment equipment, effectively prevent the pressure difference from being too high to waste electric energy
● Detect the motor's temperature to protect it.
| Model | Power（kw） | Horsepower （hp） |
Air displacement (m3/min) |
Working pressure （bar） |
Water outlet diamater | Air outlet diamater | Quantity oA cooling water | Air supply temperature | Noise Level dB | Length（mm） | Width（mm） | Height（mm） | Weight（kg） |
| OFR-70PV | 52 | 70 | 5.0 | 2.5 | DN50 | DN25 | 14 | Cooling water temperature+＜15℃ | 75 | 2400 | 1650 | 1590 | 1650 |
| OFR-79PV | 59 | 79 | 3.0 | ||||||||||
| OFR-90PV | 67 | 90 | 4.0 | ||||||||||
| OFR-90PV | 67 | 90 | 6.0 | 2.5 | DN50 | DN32 | 19 | Cooling water temperature+＜15℃ | 77 | 2400 | 1650 | 1590 | 1950 |
| OFR100PV | 75 | 100 | 3.0 | DN25 | |||||||||
| OFR-114PV | 85 | 114 | 4.0 | ||||||||||
| OFR-110PV | 82 | 110 | 8.0 | 2.5 | DN65 | DN32 | 25 | Cooling water temperature+＜15℃ | 78 | 3200 | 2050 | 1900 | 2300 |
| OFR-123PV | 92 | 123 | 3.0 | ||||||||||
| OFR-150PV | 112 | 150 | 4.0 | ||||||||||
| OFR-134PV | 100 | 134 | 10 | 2.5 | DN65 | DN32 | 31 | Cooling water temperature+＜15℃ | 80 | 3200 | 2050 | 1900 | 2600 |
| OFR-160PV | 120 | 160 | 3.0 | ||||||||||
| OFR-180PV | 135 | 180 | 4.0 | ||||||||||
| OFR-174PV | 130 | 174 | 12 | 2.5 | DN65 | DN32 | 38 | Cooling water temperature+＜15℃ | 81 | 3200 | 2050 | 1900 | 3000 |
| OFR-194PV | 145 | 194 | 3.0 | ||||||||||
| OFR-220PV | 165 | 220 | 4.0 | ||||||||||
| OFR-220PV | 165 | 220 | 16 | 2.5 | DN65 | DN50 | 50 | Cooling water temperature+＜15℃ | 82 | 3200 | 2200 | 2300 | 3300 |
| OFR-250PV | 185 | 250 | 3.0 | ||||||||||
| OFR-276PV | 207 | 276 | 4.0 | ||||||||||
| OFR-275PV | 200 | 275 | 20 | 2.5 | DN80 | DN50/DN65 | 63 | Cooling water temperature+＜15℃ | 83 | 3600 | 2200 | 2300 | 3650 |
| OFR-296PV | 222 | 296 | 3.0 | ||||||||||
| OFR-334PV | 250 | 334 | 4.0 | ||||||||||
| OFR-390PV | 292 | 390 | 30 | 2.5 | DN100 | DN50/DN65 | 95 | Cooling water temperature+＜15℃ | 83 | 3900 | 2100 | 2250 | 3900 |
| OFR-423PV | 317 | 423 | 3.0 | ||||||||||
| OFR-443PV | 332 | 443 | 4.0 | ||||||||||
| OFR-540PV | 405 | 540 | 40 | 2.5 | DN125 | DN65 | 127 | Cooling water temperature+＜15℃ | 85 | 3900 | 2100 | 2250 | 4200 |
| OFR-580PV | 435 | 580 | 3.0 | ||||||||||
| OFR-627PV | 470 | 627 | 4.0 |
