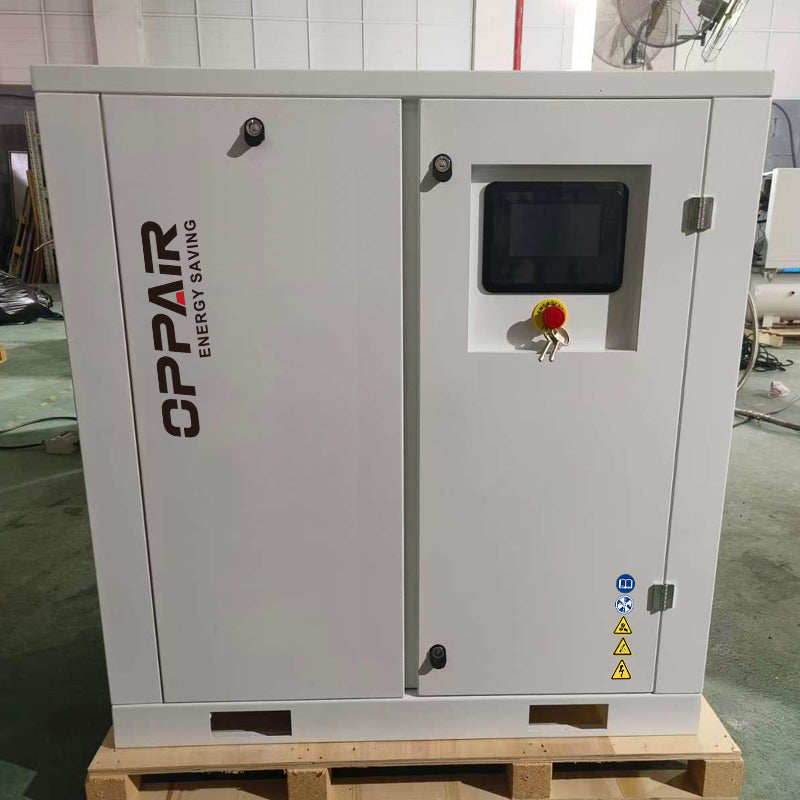

High Performance 22kw 8bar Scroll Oil Free Air Compressor Screw Type 27.5kw 33kw 10bar 3.6m3/min Industrial Air Compress Machine
¥12,800.00
OIL-FREE SCROLL AIR COMPRESSOR
Advantages:
1.Low noise, low vibration, and high energy efficiency,
2.Compact, modular, and compact design with 2-10 units, small size, and light weight, suitable for various operating conditions.
3.No oil or carbon pollution in the air, no risk of oil leaks, and no need for centralized condensate treatment, making it environmentally friendly and environmentally friendly.
4.No lubricant or oil filter replacement required, no wearingparts, and a long service life.
5.Low operating costs, zero emissions, and low power consumption.
| Model | OFR-7PV | OFR-15PV | OFR-22PV | OFR-30PV | OFR-37PV | OFR-45PV | OFR-50PV | OFR-60PV | OFR-66PV | OFR-75PV |
| Power（kw） | 5.5 | 11 | 16.5 | 22 | 27.5 | 33 | 38.5 | 44 | 49.5 | 55 |
| Horsepower(hp) | 7.5 | 15 | 22.5 | 30 | 37.5 | 45 | 52.5 | 60 | 67.5 | 75 |
| Air displacement /Working pressure（m3/min./bar） |
0.6/8 | 1.2/8 | 1.8/8 | 2.4/8 | 3.0/8 | 3.6/8 | 4.2/8 | 4.8/8 | 5.4/8 | 6.0/8 |
| 0.51/10 | 1.02/10 | 1.53/10 | 2.04/10 | 2.55/10 | 3.06/10 | 3.57/10 | 4.08/10 | 4.59/10 | 5.1/10 | |
| Air outlet diamater | DN15 | DN25 | DN25 | DN25 | DN25 | DN25 | DN25 | DN25 | DN25 | DN25 |
| Control Mode | Pressure | |||||||||
| Noise Level dB | 63 | 64 | 66 | 66 | 67 | 67 | 67 | 68 | 68 | 68 |
| Length（mm） | 800 | 1100 | 1100 | 1300 | 1500 | 1420 | 1650 | 1650 | 1650 | 1650 |
| Width（mm） | 560 | 700 | 700 | 830 | 1180 | 1010 | 1550 | 1550 | 1550 | 1550 |
| Height（mm） | 880 | 1130 | 1500 | 1260 | 1700 | 1510 | 1950 | 1950 | 1950 | 1950 |
| Weight（kg） | 135 | 258 | 322 | 470 | 860 | 890 | 1160 | 1220 | 1250 | 1350 |
| Model | OFR-7F | OFR-15F | OFR-22F | OFR-30F | OFR-37F | OFR-45F | OFR-50F | OFR-60F | OFR-66F | OFR-75F |
| Power（kw） | 5.5 | 11 | 16.5 | 22 | 27.5 | 33 | 38.5 | 44 | 49.5 | 55 |
| Horsepower(hp) | 7.5 | 15 | 22.5 | 30 | 37.5 | 45 | 52.5 | 60 | 67.5 | 75 |
| Air displacement /Working pressure（m3/min./bar） |
0.6/8 | 1.2/8 | 1.8/8 | 2.4/8 | 3.0/8 | 3.6/8 | 4.2/8 | 4.8/8 | 5.4/8 | 6.0/8 |
| 0.51/10 | 1.02/10 | 1.53/10 | 2.04/10 | 2.55/10 | 3.06/10 | 3.57/10 | 4.08/10 | 4.59/10 | 5.1/10 | |
| Air outlet diamater | DN15 | DN25 | DN25 | DN32 | DN40 | DN40 | DN40 | DN40 | DN40 | DN40 |
| Control Mode | Pressure | |||||||||
| Noise Level dB | 63 | 64 | 64 | 65 | 65 | 66 | 68 | 68 | 68 | 68 |
| Length（mm） | 680 | 1180 | 1180 | 1500 | 1500 | 1500 | 1650 | 1650 | 1650 | 1650 |
| Width（mm） | 640 | 760 | 760 | 1180 | 1180 | 1180 | 1550 | 1550 | 1550 | 1550 |
| Height（mm） | 960 | 1250 | 1690 | 1250 | 1690 | 1690 | 1500 | 1950 | 1950 | 1950 |
| Weight（kg） | 151 | 350 | 556 | 643 | 785 | 870 | 1201 | 1413 | 1330 | 1420 |
