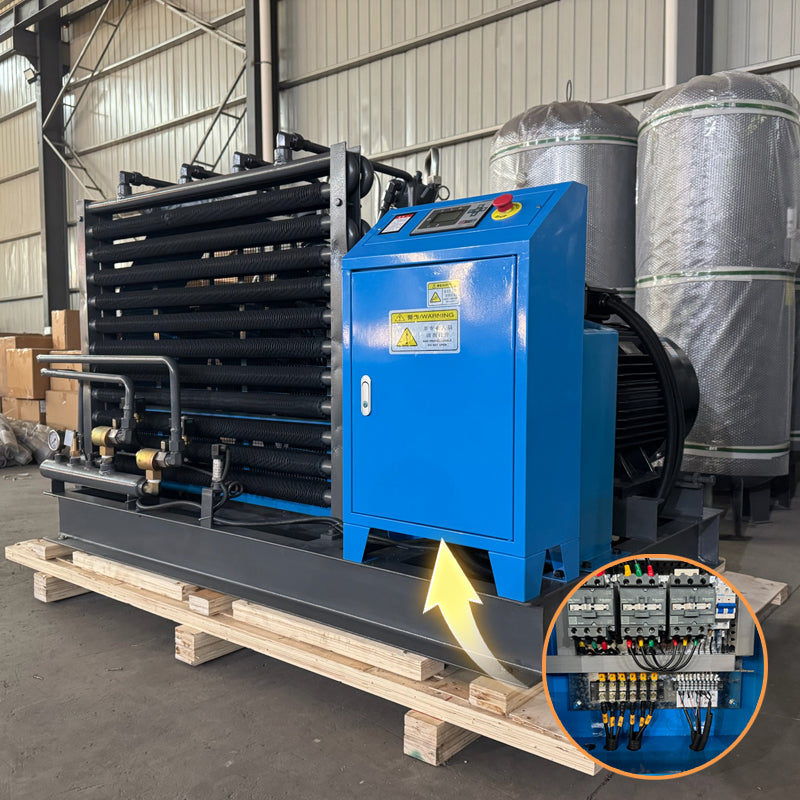

Industrial Air Booster 6.0m3 Air Cooling Type Compressor for Power Plant & Mining Site
¥11,200.00
video
The pressurized air compressor can pressurize the low-pressure air source to the high-pressure air source suitable for the blow molding machine.Compared with the traditional piston air compressor,it has the characteristics of low noise and high efficiency,and is especially suitable for large-flow application's gas requirements.
Detailed View
BOOSTER AIR COMPRESSOR FOR BOTTLE BLOWING NEED TO MATCH 8/10BAR SCREWAIR COMPRESSOR
| Model | SCH-1.5/30 | SCH-2.4/30 | SCH-3.2/30 | SCH-5.0/30 | SCH-6.0/30 | ||||||||||||
| Displacement(m³/min) | 1.5 | 2.4 | 3.2 | 5.0 | 6.0 | ||||||||||||
| Exhaust pressure(bar) | 30 | 30 | 30 | 30 | 30 | ||||||||||||
| Input pressure(bar) | 8 | 8 | 8 | 8 | 8 | ||||||||||||
| Power(kw) | 7.5 | 11 | 15 | 18.5 | 22 | ||||||||||||
| Overall dimensions L×W×H(mm) | 1000×550×950 | 1350×800×1100 | 1350×800×1100 | 1350×800×1100 | 1450×950×1250 | ||||||||||||
| Weight(kg) | 230 | 380 | 400 | 480 | 520 | ||||||||||||
| SCH-8.0/30 | SCH-10.0/30 | SCH-2.4/40 | SCH-4/40 | SCH-5/40 | SCH-6/40 | SCH-8/40 | SCH-10/40 | ||||||||||
| 8.0 | 10.0 | 2.4 | 4.0 | 5.0 | 6.0 | 8.0 | 10.0 | ||||||||||
| 30 | 30 | 40 | 40 | 40 | 40 | 40 | 40 | ||||||||||
| 8 | 8 | 10 | 10 | 10 | 10 | 10 | 10 | ||||||||||
| 30 | 37 | 15 | 18.5 | 22 | 30 | 37 | 45 | ||||||||||
| 1500×950×1300 | 1600×1000×1400 | 1500×950×1300 | 1600×1000×1300 | 1600×1000×1300 | 1650×1000×1400 | 1800×1200×1500 | 1800×1200×1500 | ||||||||||
| 600 | 850 | 600 | 750 | 750 | 800 | 850 | 850 | ||||||||||
MEDIUM PRESSURE PISTONAIR COMPRESSOR CAN REACH 30/40/60BAR DIRECTLY FROM OBAR
| Model | SCW-0.6/30(2) | SCW-1.0/30(2) | SCW-1.2/30(2) | SCW-1.6/30(3) | SCW-2.0/30(2) | 2-SCW-2.4/30(2) | |||||||||||
| Displacement(m³/min) | 0.6 | 1.0 | 1.2 | 1.6 | 2.0 | 2.4 | |||||||||||
| Exhaust pressure(bar) | 30 | 30 | 30 | 30 | 30 | 30 | |||||||||||
| Compressed stage | Two-stage compression | Three-stage compression | Two-stage compression | ||||||||||||||
| Cooling way | Air cooled | Air cooled | Air cooled | ||||||||||||||
| Power | 7.5 | 11 | 15 | 18.5 | 22 | 2*15 | |||||||||||
| Speed(rmp) | 780 | 750 | 780 | 800 | 800 | 780 | |||||||||||
| Overall dimensions L×W×H(mm) | 1100*530*1020 | 1150*800*1000 | 1200*850*1150 | 1350*850*1040 | 1500*1300*1000 | 1800*1100*1200 | |||||||||||
| Weight(kg) | 290 | 440 | 480 | 500 | 800 | 850 | |||||||||||
| SCW-0.8140(3) | SCW-1.0/40(3) | SCW-1.2/40(3) | SCW-1.6140(3) | SCW-2.0/40(3) | SCW-0.6/60(3) | SCW-1.0/60(3) | SCW-1.6/60(3) | ||||||||||
| 0.8 | 1.0 | 1.2 | 1.6 | 2.0 | 0.6 | 1.0 | 1.6 | ||||||||||
| 40 | 40 | 40 | 40 | 40 | 60 | 60 | 60 | ||||||||||
| Three-stage compression | |||||||||||||||||
| Air cooled | |||||||||||||||||
| 11 | 15 | 18.5 | 22 | 30 | 11 | 18.5 | 22 | ||||||||||
| 780 | 750 | 780 | 780 | 800 | 720 | 750 | 820 | ||||||||||
| 1150*800*1100 | 1200*750*1113 | 1400*1000*1100 | 1350*900*1040 | 1800*1300*1200 | 1200*850*1150 | 1400*1000*1100 | 1800*1300*1200 | ||||||||||
| 450 | 440 | 520 | 550 | 850 | 480 | 520 | 850 | ||||||||||
